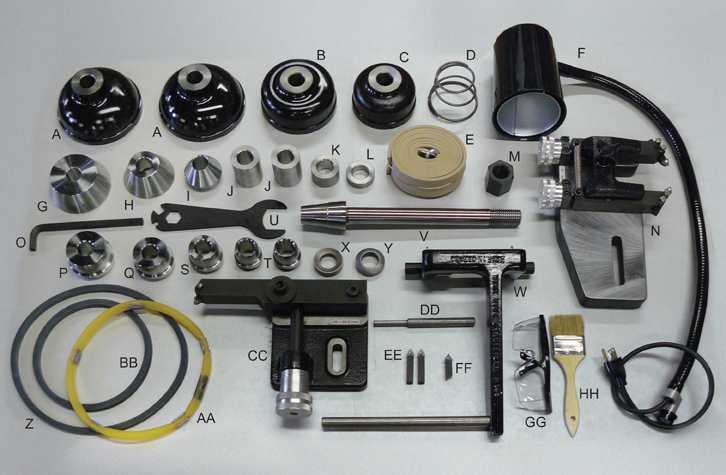

1215 TrueCut Standard Tooling



A. CW96 Hubless adapter, 1'' bore, 5.500'' (2) Q. W119 Bearing Adaptor, 1'' bore, 2.033''to 2.407''
B. W115 Hubless adapter, 1'' bore 4.750'' S. W133 Bearing Adaptor, 1'' bore, 1.659'' to 2.033''
C. W114 Hubless adapter 1'' bore 4.000'' T. W118 Bearing adaptor 1'' bore, 1.285'' to 1.659'' dia. (2)
D. W108 Spring U. W221 Wrench
E. BDL140 Chatter Band, Drum V. CL538 Mounting Shaft 10.5''
F. BDL251-1 Lamp X. W224 Self aligning spacer
G. W110 Cone 1'' bore, 3.00'' to 4.00'' Y. W223 Self aligning spacer
H. W111 Cone 1'' bore, 2.00'' to 3.125'' Z. W116 Chatterband 9 3/4''
I. CW94 Cone 1'' bore, 1.150'' to 2.350'' AA W117 Chatterband 10 3/4''
J. W101 Spacer 1'' bore, 2.00'' Long (2) BB W1131 Chatterband 7''
K. W099 Spacer 1'' bore, 1.00'' lg. CC. CL771A Drum Tool Plate Assly. (includes item FF)
L. W098 Spacer 1'' bore, 1/2'' long DD W107 Collar Bar
M. W220 Lock nut, left EE. W140 Tool holder (2) - (included in item N)
N. CL605A Tool Plate Assly (Includes item EE) FF. W140-1 Tool Bit Holder (drum) - (included in item CC)
O. CL130-1 Allen key GG W231 Safety Glasses
P. W129 Bearing adaptor, 1'' bore, 2.047'' to 2.781'' HH W232 Brush

Note: Item W - Disc stabilizer assembly P/N CL503A (Shown above) is optional. It is used together with stabilizer Mounting Bracket P/N CL785 (not shown)
